DESCRIPTION

Basic Info.

Model NO.	JS Wire rope net
Application	Filter, Construction Wire Mesh, Protecting Mesh, Screen, Decorative Mesh, Fence Mesh, Barbecue Wire Mesh, Window Curtain, Cages
Type	Stainless Steel Plain Wire Mesh
Material Type	Stainless Steel Wire
Weave Technique	Plain Weave
Wire Mesh Width	Customized
Technique	Woven
Nickels	8%
Certification	ISO9001
Aperture	25mm, 50mm, 70mm, 80mm
Cable Mesh Type	Ferrule, Knotted
Wire Diameter	1.2mm, 1.5mm, 2.0mm, 3.0mm, 3.2mm
Feature	Flexible, High-Strength
Wire Structure	7*7, 7*19
Transport Package	Wooden Box
Specification	1.2mm, 1.5mm, 1.6mm, 2mm, 3mm
Trademark	Joysun
Origin	Hebei China
HS Code	73144900
Production Capacity	1000m2/Day

Packaging & Delivery

Package Size20.00cm * 20.00cm * 20.00cm Package Gross Weight5.000kg

Product Description

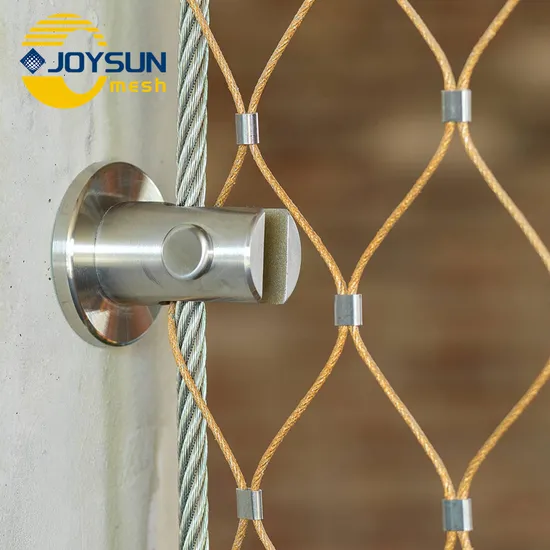

Stainless steel cable netting. also called X-TEND mesh/Webnet, is manufactured from robust, high-grade DIN 1.4401/AISI 316 stainless steel cables. The cables are swaged with tinned copper (type CX) or stainless steel (types CXE and CXS) clamps in a special process to form a mesh structure that is both stressable and flexible and suited for either two- or three-dimensional applications. X-TEND keeps its shape indefinitely and stands for long lasting use.X-TEND is fabricated from high-quality and robust stainless steel cables (material: AISI316). These are linked together by a special method using stainless steel ferrules to form a stressable yet flexible structure for two- or three-dimensional applications. X-TEND keeps its shape indefinitely and requires little maintenance only during its long lifetime.
Mesh geometry
The mesh width (MW) refers to the distance from the centre of one ferrule to the centre of the next ferrule. The optimal mesh geometry with an opening angle of 60° is given when the mesh width and the distance between the ferrules' centres along the mesh's cables
are equal. This results in the ideal tension of the mesh and is the mathematical basis for the quantity take-off.

MW Mesh width (distance from center to center of ferrule) α Standard mesh opening 60 °

Standard areas
Rope diameter	Mesh Width
1,0 mm	25 mm - 200 mm
1,5 mm	18 mm - 200 mm
2,0 mm	30 mm - 400 mm
3,0 mm	40 mm - 400 mm

Ferrule

Ferrule is a classic. It is versatile, flexible and economical, especially with small rope diameters. The sleeves are made in a specially developed process in our factory by skilled workers. Webnet with sleeves is a good choice for all projects where design and cost-efficiency are of prime importance.

Knotted

Knotted net is even more transparent than the version with sleeves while delivering practically identical strength values. Moreover, there are no troublesome light reflections from the sleeves. Consequently, sleeveless Webnet is ideally suited for strong and unobtrusive protective nets as well as for animal enclosures in zoo applications because it is easier to see through it when viewing the animals.
